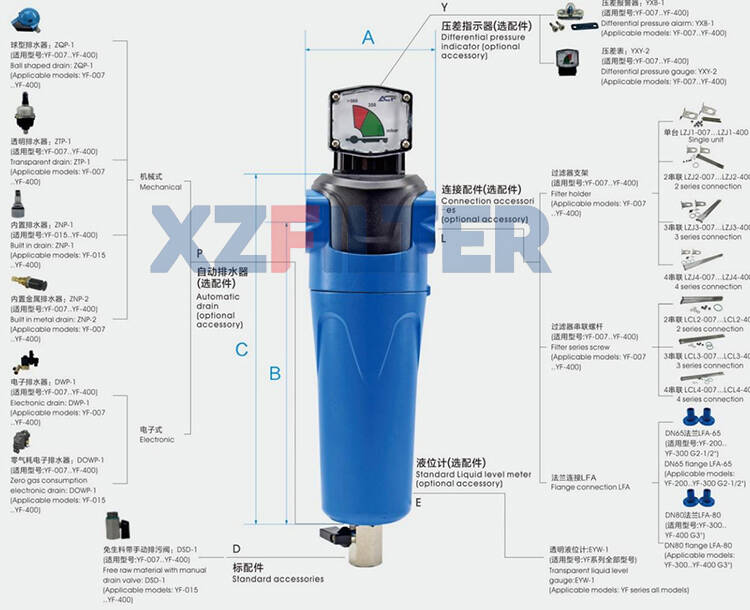

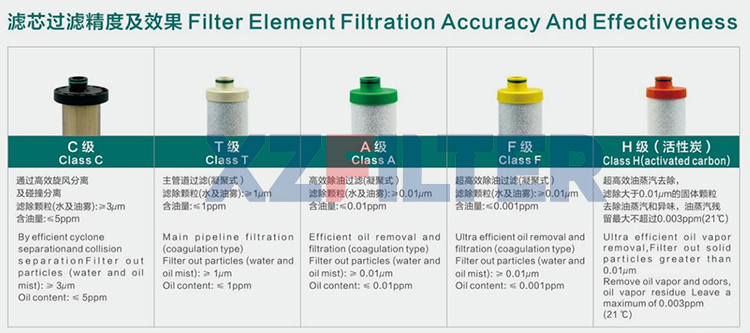

ACF Series Precision Filter YF-C-300 YF-T-300 YF-A-300 YF-F-300 YF-H-300Technical Parameter Filter HousingFilter ElementFilter ModelConnection sizeFlowFilter SizeWeightC 5μmT 1μmA 0.01μmF 0.01μmH 0.01μmC,T,A,F,HGNm3/minA mmB mmC mmKGPre FilterAfter FilterFine FilterMicron FilterActived CarbonYF-*-0073/8",1/2"0.7751651950.7KGMS-007CMS-007TMS-007AMS-007FMS-007HYF-*-0151/2",3/4"1.51002002351.8KGMS-015CMS-015TMS-015AMS-015FMS-015HYF-*-0253/4",1"2.51002402751.9KGMS-025CMS-025TMS-025AMS-025FMS-025HYF-*-0381",1-1/2"3.81252753152.5KGMS-038CMS-038TMS-038AMS-038FMS-038HYF-*-0601-1/2"6.0 1254004403.1KGMS-060CMS-060TMS-060AMS-060FMS-060HYF-*-0851-1/2"8.51254004403.15KGMS-085CMS-085TMS-085AMS-085FMS-085HYF-*-1202"12.31555105705.2KGMS-120CMS-120TMS-120AMS-120FMS-120HYF-*-1502"15.21555506105.4KGMS-150CMS-150TMS-150AMS-150FMS-150HYF-*-2002",2-1/2"20.0 1806106707.83KGMS-200CMS-200TMS-200AMS-200FMS-200HYF-*-2502",2-1/2"25.0 1806707308.5KGMS-250CMS-250TMS-250AMS-250FMS-250HYF-*-3002-1/2",3"30.521061068510.6KGMS-300CMS-300TMS-300AMS-300FMS-300HYF-*-4003"40.221080087512.8KGMS-400CMS-400TMS-400AMS-400FMS-400H  Working Pressure Correction FactorMpa Intake pressure Mpa0.40.50.60.70.80.911.11.21.31.41.51.6C10.760.850.930.11.071.131.191.251.311.361.411.461.51 Diagram Of Filter Structure Details The filter element relies on the bottom support, and there is no risk of the end cap falling off. Selected aviation grade aluminum alloy, CNCprecision machining, compact structure, high compressive strength. We promises not touse recycled materials. Four screws are connected in series for quick and space saving installation, serving as a fixing mechanism and increasing stabilitySurface treatment: internal and external electrophoretic corrosion prevention+external surface electrostatic powder spraying. Water supply hole: rapid separation, rapid filtration, rapid dischargeDrain:Manual drain,high stability, long lifespan,bottom with sealing ring, no need for raw material tape, can also be equipped with automatic drain. Introduction to Folding Filter Technology After years of technological research and development, Our Filter has completed a multi-layer folding process with ultra-low folding height and ultra-high precision. Using advanced composite filter materials of different accuracies to form a perfect gradient filter, combined with excellent folding technology. Enable the filter element to have 2-3 times more flow rate than traditional winding processes, while reducing pressure loss and increasing filtration efficiency.     Contact: FannyXinxiang Xinzheng Filter Equipment Co., LtdAdd: D5, 4th Floor, Venture Building, No. 1 Park, High-tech Zone, Xinxiang City, Henan Province, China.Phone: 0086-15083122473Tel: 0086-373-5011868Email: fanny@xzfilters.comSkype: fanny20121016QQ: 826003533Whatsapp: 86-15083122473Wechat: 86-15083122473
