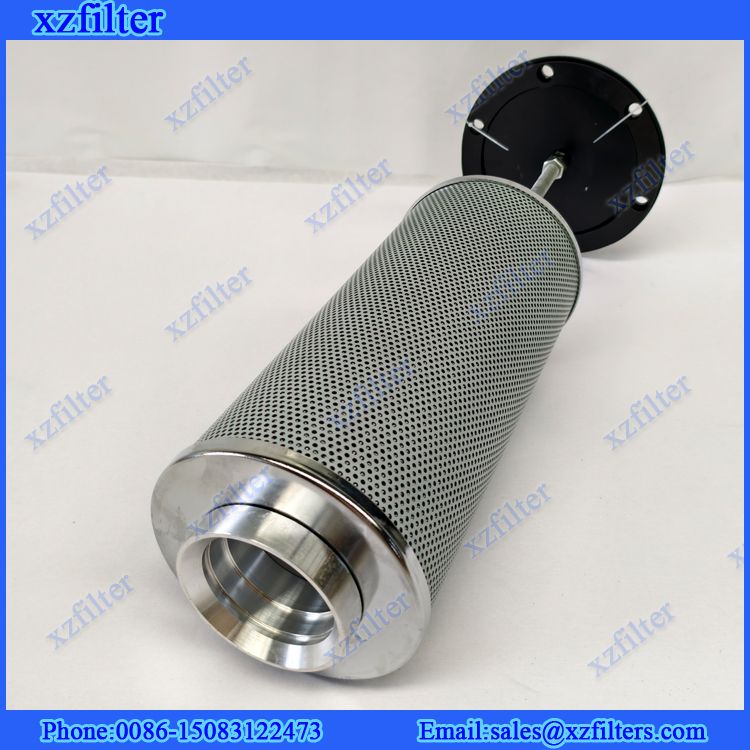

XNL Series Oil Return Filter XNL-1000X3 XNL-1000X5 XNL-1000X10 XNL-1000X20 XNL-1000X30 INTRODUCTION The XNL series return line filter is a new type filter. It is used in the return line of hydraulic system to remove all the contaminants and keep the oil cleaning when the oil returns to the tank. This series filter has some features as follow:    a) it can be installed on the top of tank;     b) The check valve will not let the oil flow out of the tank during mainten ance the contaminants inside the element can be taken out when changing the element;     c) there is a by-pass valve on the top of element, when the  pressure drop across the filter element attains 0.4MPa, the valve will open to protect the hydraulic system safety;     d) the permanent magnets inside the filter can filter the magnetic particles above 1μm dia. from the oil.If you chose XNL series filter, the indicator should be equipped. When the pressure drop across the element reaches 0.35MPa, the element must be changed. Technical DataModelFlow rateFiltr.DiaPressPressure loss(MPa)IndicatorBy-pass settingWeightModel of element(L/min)(μm)(mm)(MPa)InitialMax.(V)(A)(MPa)(Kg)XNL-25X*-C/Y251200.6≤0.10.350.41.2NLX-25X*XNL-40X*-C/Y4031.5NLX-40X*XNL-63X*-C/Y635322.3NLX-63X*XNL-100X*-C/Y10010122.52.5NLX-100X*XNL-160X*-C/Y16020502424.6NLX-160X*XNL-250X*-C/Y25040361.55.1NLX-250X*XNL-400X*-C/Y400802200.2510.1NLX-400X*XNL-630X*-C/Y63010.8NLX-630X*XNL-800X*-C/Y8009014.2NLX-800X*XNL-1000X*-C/Y100014.9NLX-1000X* Note: * is filtration accuracy, if the medium is water-glycol, flow rate is 160L/min, filtration auuracy is 10μm, with CYB-I indicator, the model of this filter is XNL*BH-160X10Y, the model of this element is NLX*BH-160X10. Mounting SizeModelD1D2D3D4D5D6D7L1L2L3Min L4L5dXNL-25X*-C/YΦ129Φ105Φ85Φ20Φ25Φ80Φ46211214528020Φ9XNL-40X*-C/Y180315XNL-63X*-C/YΦ154Φ130Φ110Φ32Φ40Φ106Φ56231516030022XNL-100X*-C/Y210350XNL-160X*-C/YΦ200Φ170Φ145Φ50Φ55Φ141Φ76282025043027Φ11XNL-250X*-C/Y320500XNL-400X*-C/YΦ242Φ210Φ185Φ80Φ85Φ180Φ108322240058031Φ13.5XNL-630X*-C/Y500680XNL-800X*-C/YΦ262Φ230Φ205Φ90Φ100Φ200Φ1273222600805XNL-1000X*-C/Y750935 Filter elements are tested according to the following ISO standards:ISO 2941 Verification of collapse/burst resistanceISO 2942 Verification of fabrication integrityISO 2943 Verification of material compatibility with fluidsISO 3723 Method for end load testISO 3724 Verification of flow fatigue characteristicsISO 3968 Evaluation of pressure drop versus flow characteristicsISO 16889 Multi-pass method for evaluating filtration performance Packing & ShippingPlastic bag inside,carton box outside, or according customer special requirement.Pallet or wooden box or according customer special requirement. Our ServiceHydraulic FiltersArgo, Boll, Bosch Rexroth, CJC, Donaldson, Eaton (Internormen), Filtrec, Gardner Denver, Hydac, Hy-pro, Hifi, Hilco, Indufil, Mahle, Mp Filtri, OMT, Pall, Parker, Stauff, SF, Schroeder,Taisei Kogyo, UFI, Vickers... Compressor Air Filters & Oil Filters & SeparatorsAtlas Copco, Aerzen, ABAC, Boge, Bolaite, Compair, Ceccato, Elgi, Fusheng, Gardner Denver, Hifi, Hitachi, Ingersoll Rand, Kobelco,  Kaeser, Liutech, Mann, Quincy, Sullair, Samsung, Sotras... Compressed Precision Inline FiltersAtlas Copco, AFE, ABAC, ATS, Airflux, Beko, Boge, BEA, Ceccato, Compair, CTA, CKD, Deltech, Domnick Hunter, Donaldson (Ultrafilter), Friulair, Fusheng, FST, Gardner Denver, Hifi, Hankison, Hiross, Ingersoll Rand, Kaeser, Knocks, Kellin, KSI, Liutech,  Mikropor, MTA, Nano, Numatics, OMI, Omega, Orion, Parker, Risheng, Sotras, SMC, Sege, Shanli, Sullair, Walker, Wikerson, Zander... Vacuum Pump FiltersBusch, Leybold, Becker, Rietschle Suction Strainers, Coalescer Filters, RRR Filters, Leemin Filters, Natural gas filter, Oil Filter Purfier...  FAQQ1. What is your product range?A: Our products cover replacement hydraulic filters, compressor air filters, oil filters, separators, compressed air filters, vacuum pump exhaust filters. Q2. Is customized filter or OEM available?A: Yes, just offer your required sepcifications and drawings. Q3. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. Q4. What's your terms of packing?A: Generally,we pack our goods in neutral boxes,outside brown carton cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.Q5. What's the terms of payment?A: T/T 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balancing.Q6. What's your terms of delivery?A: (1) EXW (2) FOB (3)CFR (4)CIF. Q7. How about your delivery time?A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order. Q8. What's your sample policy?A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.   Contact: AlanXinxiang Xinzheng Filter Equipment Co., LtdAdd: D5, 4th Floor, Venture Building, No. 1 Park, High-tech Zone, Xinxiang City, Henan Province, China.Phone: 0086-15083125759Tel: 0086-373-5011868Email: alan@xzfilters.comQQ: 2572060047Whatsapp: 86-15083125759Wechat: 86-15083125759
