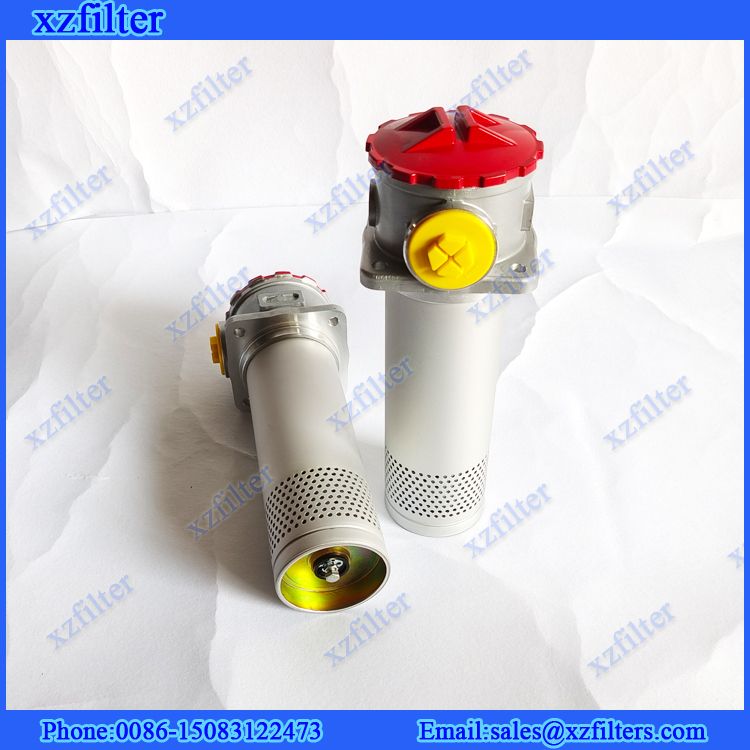

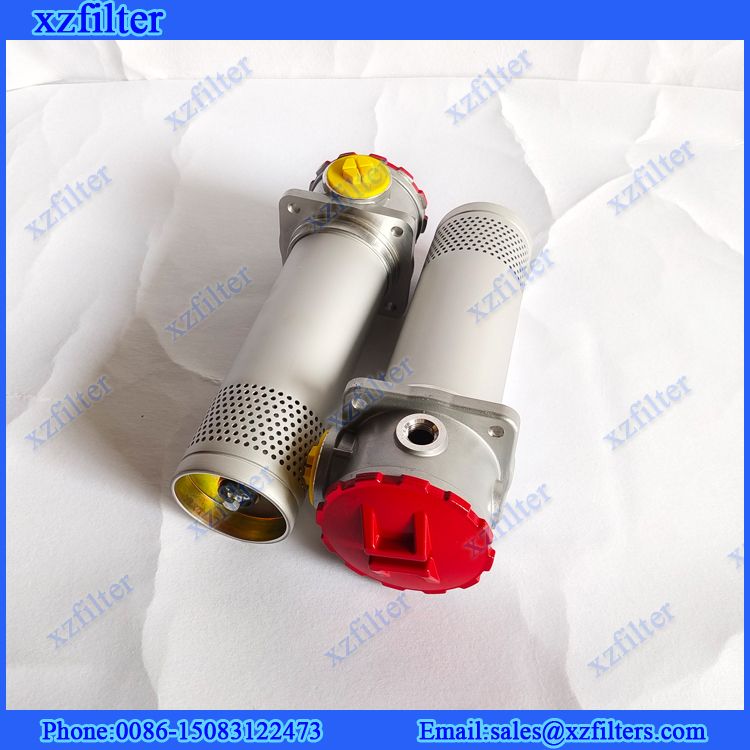

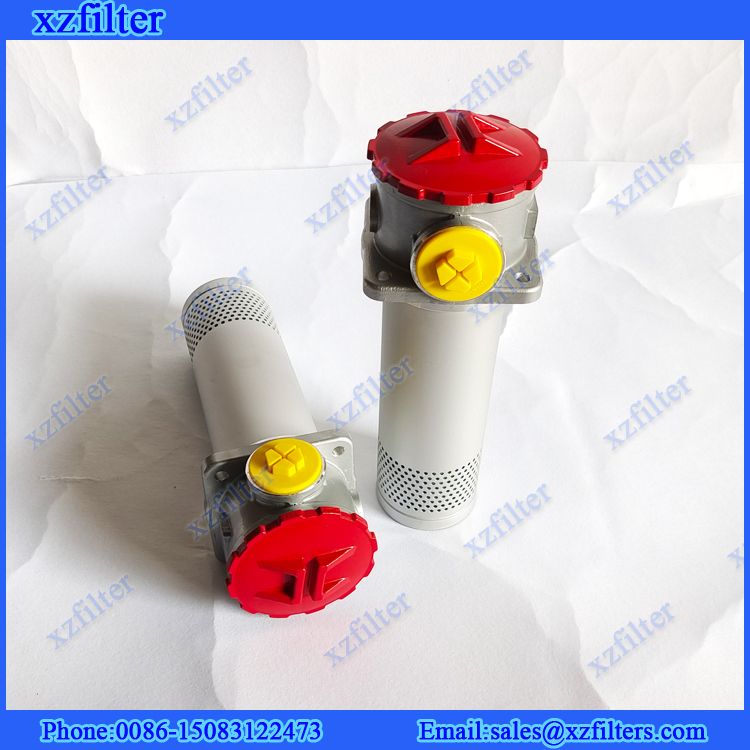

RFA Tank Mounted Mini-type Return Filter Series RFA-25 RFA-40 RFA-63 RFA-100 RFA-160 RFA-250 RFA-400 RFA-630 RFA-800 RFA-1000

Introduction

This kind of filter can be used in hydraulic system for fine filtration.

It can be installed on the cover of the tank. The filter head should be out of the tank and the filter bowl should immerse in the oil.

The inlet port has threaded and flanged connections.The filter has indicator and by pass valve.

When the dirt accumulates in the filter element or the temperature of the system is too low, and the oil inlet pressure reaches 0.35MPa, the indicator will give signals showing that the filter element should be cleaned, changed or raise the temperature. If no service is done and as the pressure reaches to 0.4MPa, the by-pass valve will open automatically to keep the hydraulic system safe.

It is easy to change filter element and to inject the oil to the tank: open the filter cover, the filter element could be changed or the oil can be injected into tank. Two oil ports at filter head which are M18X1.5, the indicator can be installed at any part and they can filter some oil which may return to the tank.

The filter has fluid diffuse. The fluid diffuse is at bottom of the filter and can help the medium flow stably to the tank and avoid the air reentering.

The filter element is made of glass fiber, so it has high filtration accuracy, low initial pressure loss, high dirt-holding capacity and so on. Filter ratio β 3. 5. 10, 20 ≥ 200 filtration efficiency n ≥ 99.5%, and fit the ISO standard.

MODEL	Flow Rate	Filtr	Dia	Press	Initial Δp(Mpa)		Indicator		Weight	Model of Element
MODEL	(L/Min)	(um)	(mm)	(Mpa)	Initial	Max	V	A	(Kg)	Model of Element
RFA-25X*L-C/Y	25	1	15	1.6	≤0.075	0.35			0.85	FAX-25X*
RFA-40X*L-C/Y	40	3	20				12	2.5	0.9	FAX-40X*
RFA-63X*L-C/Y	63	5	25				24	2	1.5	FAX-63X*
RFA-100X*L-C/Y	100	10	32				36	1.5	1.7	FAX-100X*
RFA-160X*L-C/Y	160	20	40				220	0.25	2.7	FAX-160X*
RFA-250X*F-C/Y	250	30	50						4.35	FAX-250X*
RFA-400X*F-C/Y	400		65						6.15	FAX-400X*
RFA-630X*F-C/Y	630		90						8.2	FAX-630X*
RFA-800X*F-C/Y	800		90						8.9	FAX-800X*
RFA-1000X*F-C/Y	1000		90						9.96	FAX-1000X*

Table 1: RFA-25~160 threaded connection

Model	Size(mm)
	L1	L2	L3	H	D	M	m	A	B	C1	C2	C3	d	h
RFA-25x*L-C/Y	127	74	45	25	Φ75	M22x15	M18x15	90	70	53	45	39	Φ9	10
RFA-40x*L-C/Y	158					M27x2
RFA-63x*L-C/Y	185	93	60	33	Φ95	M33x2		110	85	60	53			12
RFA-100x*L-C/Y	245					M42x2
RFA-160x*L-C/Y	322	108	80	40	Φ110	M48x2		125	95	71	61		Φ13	15

Table 2: RFA-250~1000 flanged connection

Model	Size(mm)
Model	L1	L2	L3	H	D	E	m	a	b	n	A	B	C1	C2	C3	d	Q	h
RFA-250x*F-C/Y	422	108	80	40	Φ110	Φ50	M18x1.5	70	40	M10	125	95	81	61	39	Φ13	60	15
RFA-400x*F-C/Y	467	135	100	55	Φ130	Φ65		90	50		140	110	90	68			73	15
RFA-630x*F-C/Y	494	175	118	70	Φ160	Φ90		120	70		170	140	110	85			102	18
RFA-800x*F-C/Y	606
RFA-1000x*F-C/Y	786

Filter Elements Part Numbers

FAX-25X1	FAX-25X3	FAX-25X5	FAX-25X10	FAX-25X20	FAX-25X30
FAX-40X1	FAX-40X3	FAX-40X5	FAX-40X10	FAX-40X20	FAX-40X30
FAX-63X1	FAX-63X3	FAX-63X5	FAX-63X10	FAX-63X20	FAX-63X30
FAX-100X1	FAX-100X3	FAX-100X5	FAX-100X10	FAX-100X20	FAX-100X30
FAX-160X1	FAX-160X3	FAX-160X5	FAX-160X10	FAX-160X20	FAX-160X30
FAX-250X1	FAX-250X3	FAX-250X5	FAX-250X10	FAX-250X20	FAX-250X30
FAX-400X1	FAX-400X3	FAX-400X5	FAX-400X10	FAX-400X20	FAX-400X30
FAX-630X1	FAX-630X3	FAX-630X5	FAX-630X10	FAX-630X20	FAX-630X30
FAX-800X1	FAX-800X3	FAX-800X5	FAX-800X10	FAX-800X20	FAX-800X30
FAX-1000X1	FAX-1000X3	FAX-1000X5	FAX-1000X10	FAX-1000X20	FAX-1000X30
FAX-1300X1	FAX-1300X3	FAX-1300X5	FAX-1300X10	FAX-1300X20	FAX-1300X30

Filter elements are tested according to the following ISO standards:

ISO 2941 Verification of collapse/burst resistance

ISO 2942 Verification of fabrication integrity

ISO 2943 Verification of material compatibility with fluids

ISO 3723 Method for end load test

ISO 3724 Verification of flow fatigue characteristics

ISO 3968 Evaluation of pressure drop versus flow characteristics

ISO 16889 Multi-pass method for evaluating filtration performance

Packing & Shipping

Plastic bag inside,carton box outside, or according customer special requirement.

Pallet or wooden box or according customer special requirement.

Our Service

Hydraulic Filters

Argo, Boll, Bosch Rexroth, CJC, Donaldson, Eaton (Internormen), Filtrec, Gardner Denver, Hydac, Hy-pro, Hifi, Hilco, Indufil, Mahle, Mp Filtri, OMT, Pall, Parker, Stauff, SF, Schroeder,Taisei Kogyo, UFI, Vickers...

Compressor Air Filters & Oil Filters & Separators

Atlas Copco, Aerzen, ABAC, Boge, Bolaite, Compair, Ceccato, Elgi, Fusheng, Gardner Denver, Hifi, Hitachi, Ingersoll Rand, Kobelco, Kaeser, Liutech, Mann, Quincy, Sullair, Samsung, Sotras...

Compressed Precision Inline Filters

Atlas Copco, AFE, ABAC, ATS, Airflux, Beko, Boge, BEA, Ceccato, Compair, CTA, CKD, Deltech, Domnick Hunter, Donaldson (Ultrafilter), Friulair, Fusheng, FST, Gardner Denver, Hifi, Hankison, Hiross, Ingersoll Rand, Kaeser, Knocks, Kellin, KSI, Liutech,

Mikropor, MTA, Nano, Numatics, OMI, Omega, Orion, Parker, Risheng, Sotras, SMC, Sege, Shanli, Sullair, Walker, Wikerson, Zander...

Vacuum Pump Filters

Busch, Leybold, Becker, Rietschle

Suction Strainers, Coalescer Filters, RRR Filters, Leemin Filters, Natural gas filter, Oil Filter Purfier...

FAQ

Q1. What is your product range?
A: Our products cover replacement hydraulic filters, compressor air filters, oil filters, separators, compressed air filters, vacuum pump exhaust filters.

Q2. Is customized filter or OEM available?
A: Yes, just offer your required sepcifications and drawings.

Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q4. What's your terms of packing?
A: Generally,we pack our goods in neutral boxes,outside brown carton cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q5. What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balancing.

Q6. What's your terms of delivery?
A: (1) EXW (2) FOB (3)CFR (4)CIF.

Q7. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.

Q8. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
