Replacement GARDNER DENVER Filter Elements

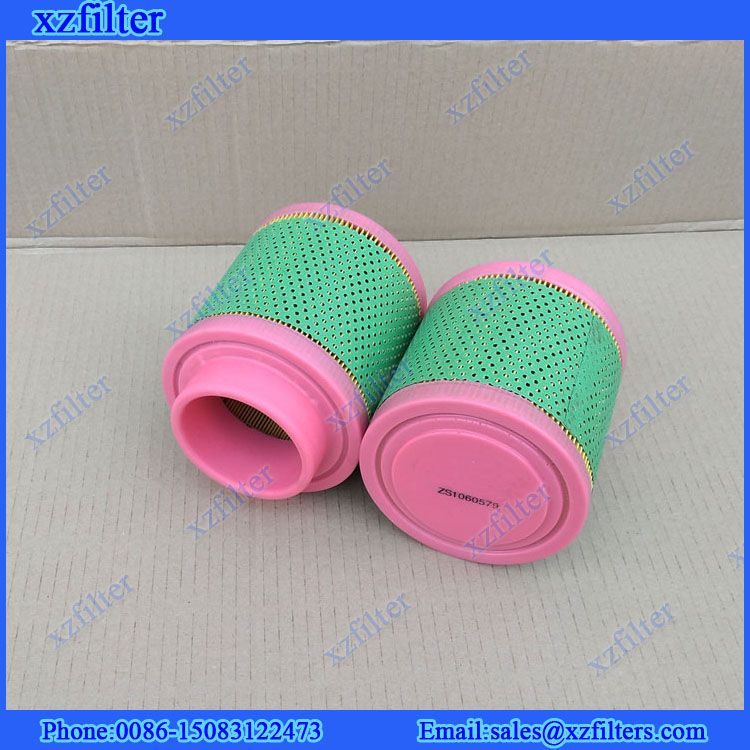

Replacement Gardner Denver Air Filter Element ZS1060579

Replacement Gardner Denver Air Filter Element ZS1060579 Compressor Oil Filters Technical Data:1. Filtration Accuracy: 10μm-15μm2. Filtration efficiency: 99.8%3. Service life is up to 2000h4. Oil filters are made of imported US HV & Korea Ahlstrom company pure wood pulp paper Compressor Air Filters Technical Data:1. Filtration Accuracy: 5μm-10μm2. Filtration efficiency: 98%3. Service life is up to 2000h4. Air filters are made of imported US HV & Korea Ahlstrom company pure wood pulp paper Compressor Separator Technical Data1. Filtration Accuracy: 0.1μm2. Oil contained in compressed is below 3 ppm3. Filtration efficiency: 99.999%4. Service life is up to 4000-6000h5. Initial pressure differential ≤0.02Mpa6. Filter element of air oil separator is made of imported composite fiber, which imported from HV & Lydall company Filter elements are tested according to the following ISO standards:ISO 2941 Verification of collapse/burst resistanceISO 2942 Verification of fabrication integrityISO 2943 Verification of material compatibility with fluidsISO 3723 Method for end load testISO 3724 Verification of flow fatigue characteristicsISO 3968 Evaluation of pressure drop versus flow characteristicsISO 16889 Multi-pass method for evaluating filtration performance Packing & ShippingPlastic bag inside,carton box outside, or according customer special requirement.Pallet or wooden box or according customer special requirement. Our ServiceHydraulic FiltersArgo, Boll, Bosch Rexroth, CJC, Donaldson, Eaton (Internormen), Filtrec, Gardner Denver, Hydac, Hy-pro, Hifi, Hilco, Indufil, Mahle, Mp Filtri, OMT, Pall, Parker, Stauff, SF, Schroeder,Taisei Kogyo, UFI, Vickers... Compressor Air Filters & Oil Filters & SeparatorsAtlas Copco, Aerzen, ABAC, Boge, Bolaite, Compair, Ceccato, Elgi, Fusheng, Gardner Denver, Hifi, Hitachi, Ingersoll Rand, Kobelco,  Kaeser, Liutech, Mann, Quincy, Sullair, Samsung, Sotras... Compressed Precision Inline FiltersAtlas Copco, AFE, ABAC, ATS, Airflux, Beko, Boge, BEA, Ceccato, Compair, CTA, CKD, Deltech, Domnick Hunter, Donaldson (Ultrafilter), Friulair, Fusheng, FST, Gardner Denver, Hifi, Hankison, Hiross, Ingersoll Rand, Kaeser, Knocks, Kellin, KSI, Liutech,  Mikropor, MTA, Nano, Numatics, OMI, Omega, Orion, Parker, Risheng, Sotras, SMC, Sege, Shanli, Sullair, Walker, Wikerson, Zander... Vacuum Pump FiltersBusch, Leybold, Becker, Rietschle Suction Strainers, Coalescer Filters, RRR Filters, Leemin Filters, Natural gas filter, Oil Filter Purfier...  FAQQ1. What is your product range?A: Our products cover replacement hydraulic filters, compressor air filters, oil filters, separators, compressed air filters, vacuum pump exhaust filters. Q2. Is customized filter or OEM available?A: Yes, just offer your required sepcifications and drawings. Q3. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. Q4. What's your terms of packing?A: Generally,we pack our goods in neutral boxes,outside brown carton cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.Q5. What's the terms of payment?A: T/T 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balancing.Q6. What's your terms of delivery?A: (1) EXW (2) FOB (3)CFR (4)CIF. Q7. How about your delivery time?A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order. Q8. What's your sample policy?A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.   Contact: AlanXinxiang Xinzheng Filter Equipment Co., LtdAdd: D5, 4th Floor, Venture Building, No. 1 Park, High-tech Zone, Xinxiang City, Henan Province, China.Phone: 0086-15083125759Tel: 0086-373-5011868Email: alan@xzfilters.comQQ: 2572060047Whatsapp: 86-15083125759Wechat: 86-15083125759
Get Quotation

Product Details

Replacement Gardner Denver Air Filter Element ZS1060579



Compressor Oil Filters Technical Data:

1. Filtration Accuracy: 10μm-15μm

2. Filtration efficiency: 99.8%

3. Service life is up to 2000h

4. Oil filters are made of imported US HV & Korea Ahlstrom company pure wood pulp paper



Compressor Air Filters Technical Data:

1. Filtration Accuracy: 5μm-10μm

2. Filtration efficiency: 98%

3. Service life is up to 2000h

4. Air filters are made of imported US HV & Korea Ahlstrom company pure wood pulp paper



Compressor Separator Technical Data

1. Filtration Accuracy: 0.1μm

2. Oil contained in compressed is below 3 ppm

3. Filtration efficiency: 99.999%

4. Service life is up to 4000-6000h

5. Initial pressure differential 0.02Mpa

6. Filter element of air oil separator is made of imported composite fiber, which imported from HV & Lydall company



Filter elements are tested according to the following ISO standards:

ISO 2941 Verification of collapse/burst resistance

ISO 2942 Verification of fabrication integrity

ISO 2943 Verification of material compatibility with fluids

ISO 3723 Method for end load test

ISO 3724 Verification of flow fatigue characteristics

ISO 3968 Evaluation of pressure drop versus flow characteristics

ISO 16889 Multi-pass method for evaluating filtration performance



Packing & Shipping

Plastic bag inside,carton box outside, or according customer special requirement.

Pallet or wooden box or according customer special requirement.



Our Service

Hydraulic Filters

Argo, Boll, Bosch Rexroth, CJC, Donaldson, Eaton (Internormen), Filtrec, Gardner Denver, Hydac, Hy-pro, Hifi, Hilco, Indufil, Mahle, Mp Filtri, OMT, Pall, Parker, Stauff, SF, Schroeder,Taisei Kogyo, UFI, Vickers...



Compressor Air Filters & Oil Filters & Separators

Atlas Copco, Aerzen, ABAC, Boge, Bolaite, Compair, Ceccato, Elgi, Fusheng, Gardner Denver, Hifi, Hitachi, Ingersoll Rand, Kobelco,  Kaeser, Liutech, Mann, Quincy, Sullair, Samsung, Sotras...



Compressed Precision Inline Filters

Atlas Copco, AFE, ABAC, ATS, Airflux, Beko, Boge, BEA, Ceccato, Compair, CTA, CKD, Deltech, Domnick Hunter, Donaldson (Ultrafilter), Friulair, Fusheng, FST, Gardner Denver, Hifi, Hankison, Hiross, Ingersoll Rand, Kaeser, Knocks, Kellin, KSI, Liutech,

Mikropor, MTA, Nano, Numatics, OMI, Omega, Orion, Parker, Risheng, Sotras, SMC, Sege, Shanli, Sullair, Walker, Wikerson, Zander...



Vacuum Pump Filters

Busch, Leybold, Becker, Rietschle



Suction Strainers, Coalescer Filters, RRR Filters, Leemin Filters, Natural gas filter, Oil Filter Purfier...



FAQ


Q1. What is your product range?
A: Our products cover replacement hydraulic filters, compressor air filters, oil filters, separators, compressed air filters, vacuum pump exhaust filters.



Q2. Is customized filter or OEM available?
A: Yes, just offer your required sepcifications and drawings.



Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.



Q4. What's your terms of packing?
A: Generally,we pack our goods in neutral boxes,outside brown carton cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.


Q5. What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balancing.


Q6. What's your terms of delivery?
A: (1) EXW (2) FOB (3)CFR (4)CIF.



Q7. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.



Q8. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
